Fine series
Fine 3
Fine 6
Fine 8
Fine 308
Fine 15S
Fine 15S
Fine 18S
Fine 15S
Fine4System [DISCONTINUED]
Fine4System [DISCONTINUED]
Fine4System [DISCONTINUED]

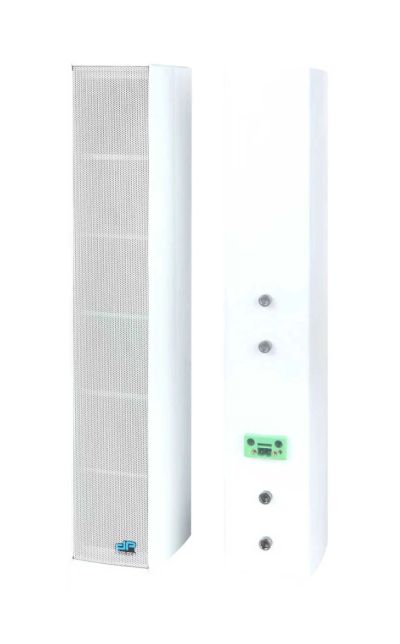

Fine 3
Fine-3 column speaker：
Category: 2" 3-unit full range column speaker
Nominal impe: 8Ω
Power Rating (AES): 60W/ 180W
Frequency Response : 200hz - 20kHz
Approvals:
Weight and Measurements:
Dimensions (HxWxD): 195 x 67.5 x 88 mm
Net Weight: 1.02kg
Input Connector: 1 x 5.08mm 2pin phoenix contact terminal block
Fine 3 Bracket
Bracket mounting accessories: F-3 (for Fine-3)
Iron / white paint, 4 x 3mm screws fixed, sleeve outer diameter 40mm, inner diameter 36mm, pipe length 80mm, fixed by one 6mm screw.
Fine 6
Fine-6 column speaker：
Category: 2" 6-unit full range column speaker
Nominal impe: 8Ω
Power Rating (AES): 120W/ 360W
Frequency Response : 200hz - 20kHz
Approvals:
Weight and Measurements:
Dimensions (HxWxD): 375x 67.5 x 88 mm
Net Weight: 1.9kg
Input Connector: 1 x 5.08mm 2pin phoenix contact terminal block
Fine 6 Bracket
Bracket mounting accessories: F-6 (for Fine-6)
Iron / white paint, 2 x 6mm screws fixed, sleeve outer diameter 40mm, inner diameter 36mm, pipe length 80mm, fixed by one 6mm screw.
Fine 8
Technical Specifications:
Category: 8" x 3" full range unit column speaker
Nominal impe: 32 Ω
Power Rating (AES): 240 W
Power Rating Peak: 960 W
Sensitivity 1w/1m: 89 dB / 1M / 1W
Frequency Response +/- 3dB: 150 hz - 20Khz
Max SPL, calculated long term: 115 dB
Approvals:
Weight and Measurements:
Dimensions (HxWxD): 770 x 96 x 106.5 mm
Net Weight: 8.1 kg
Finish: Black safety coating, other colours available
Grille: 1.5 mm steel mesh
Input Connector: 2 x 5.08 mm phoenix socket
Accessories:
Included Items: User manual
Related Items: 2 x 6 mm three-point mounting bracket available
Fine 8 Bracket
Bracket mounting accessories: F-8 (for Fine-8 & Fine-308)
Iron / white paint, 2 x 6mm screws fixed, sleeve outer diameter 40mm, inner diameter 36mm, pipe length 80mm, fixed by one 6mm screw.
Fine 308
Technical Specifications:
Category: 8" x 3" full range unit column speaker
Nominal impe: 16 Ω
Power Rating (AES): 240 W
Power Rating Peak: 960 W
Sensitivity 1w/1m: 89 dB / 1M / 1W
Frequency Response +/- 3dB: 150 hz - 20Khz
Max SPL, calculated long term: 115 dB
Approvals:
Weight and Measurements:
Dimensions (HxWxD): 770 x 96 x 106.5 mm
Net Weight: 8.1 kg
Finish: Black safety coating, other colours available
Grille: 1.5 mm steel mesh
Input Connector: 2 x 5.08 mm phoenix socket
Accessories:
Included Items: User manual
Related Items: 2 x 6 mm three-point mounting bracket available

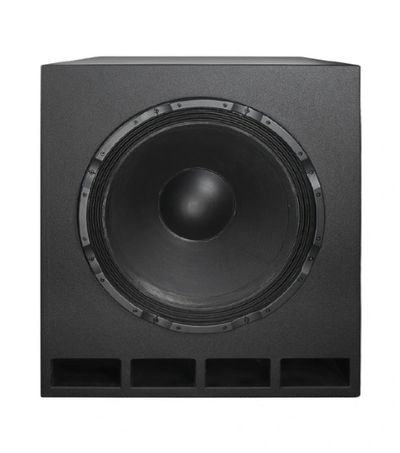

Fine 15S
Technical Specifications:
Category: Passive bass box, 6th order inverted bass structure
Power Rating (AES): 600W
LF Unit: 15"
Sensitivity 1w / 1m: 97dB
Frequency Response +/- 3dB: 35 - 250 hz
Max SPL Peak: 118 dB / @1kHz
Weight and Measurements:
Dimensions (HxWxD): 650 x 550 x 280 mm
Net Weight: 35 kg
Finish: Black safety coating, other colours available
Grille: 18 mm thick high-density board
Input Connector: 2xNL-4 speakon speaker terminal block
Accessories:
Included Items: User manual
Related Items: Hanger / Support frame
Fine 18S
Technical Specifications:
Category: Passive bass box, 6th order inverted bass structure
Power Rating (AES): 600 W
LF Unit: 18"
Sensitivity 1w / 1m: 97 dB
Frequency Response +/- 3 dB: 35-250 hz
Max SPL, peak: 118 dB / @1kHz
Weight and Measurements:
Dimensions (HxWxD): 700 x 660 x 330 mm
Net Weight: 42 kg
Finish: Black safety coating, other colours available
Grille: 18 mm thick high-density board
Input Connector: 2xNL-4 speakon speaker terminal
Accessories:
Included Items: User manual
Related Items: Hanger / support
Fine4System [discontinued]
Technical Specifications:
Category: 2" 4-unit full range column speaker / 6.5" 2-unit subwoofer
Nominal impe: 8Ω / 4Ω
Power Rating (AES): 80W/ 240W
Frequency Response +/- 3dB: 35hz - 15kHz
Approvals:
Weight and Measurements:
Fine4
Dimensions (HxWxD): 324 x 64 x 86 mm
Net Weight: 1.8 kg
Input Connector: 1 x NL-4 Speakon +1-1
Fine625
Dimensions (HxWxD): 460 x 460 x 210 mm
Net Weight: 14.2 kg
Input Connector: 2 x NL-4 Speakon +1-1
Fine4 System (Fine4 column and Fine62S bass)
Dimensions (HxWxD): 520 x 612 x 272 mm
Net Weight: 18 kg
Appearance coating: Black safety coating, other colours available
Accessories:
Included Items: User manual
Related Items: 2-point 6mm mounting and fixing holes on the back, mounting brackets can be purchased
DC series
DC-4
DC-10
DC-12
DC-122S
DC-152S
DC-24SUB
DC-32SUB
DC-32SUB
DC-32SUB

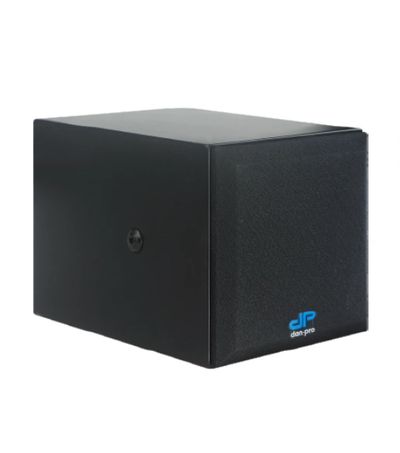

DC-4
Technical Specifications:
Category: One 4" full-range unit
Nominal impe: 8 Ω
Power Rating (AES): 40 W
Frequency Response +/- 3 dB: 100 hz-20 kHz
Max SPL, peak: 112 dB
Weight and Measurements:
Dimensions: 120W x 120H x 156D (mm)
Net Weight: 1.5 kg
Finish: Black safety coating, other colours available
Grille: MDF Cabinet
Accessories:
Included Items: User manual
Related Items: 2.6mm mounting and fixing holes on the back, external mounting bracket can be purchased
DC-10
Technical Specifications:
Category: 1" compression tweeter + 10" two-way full-range sealed ultra thin speakers
Nominal Impe: 8 Ω
Power Rating (AES): 350 W
LF Unit: 18"
Frequency Response +/- 3 dB: 60 hz - 19 kHz
Sensitivity 1w / 1m: 92 dB
Max SPL, peak: 125 dB
Dispersion (HxV): 100° x 60°
Weight and Measurements:
Dimensions (HxWxD): 520 x 400 x 2400 mm
Net Weight: 15 kg
Finish: Black safety coating, other colours available
Grille: Face mesh, detachable acoustic cloth mesh
Accessories:
Included Items: User manual
DC-12
Technical Specifications:
Category: 1" compressed tweeter + 12" two-way full-range sealed ultra thin cinema speakers
Nominal Impe: 8 Ω
Power Rating (AES): 400 W
Frequency Response +/- 3 dB: 60 hz - 19 kHz
Sensitivity 1w / 1m: 96 dB
Max SPL, peak: 128 dB
Dispersion (HxV): 100° x 60°
Weight and Measurements:
Dimensions (HxWxD): 600 x 400 x 240 mm
Net Weight: 18 kg
Finish: Black safety coating, other colours available
Grille: Detachable acoustic cloth mesh
Accessories:
Included Items: User manual

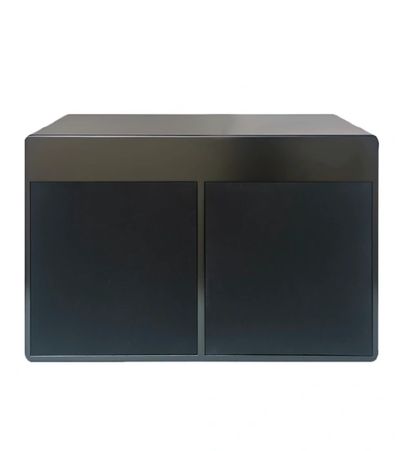

DC-122S
Technical Specifications:
Category: Dual 12" ultra-thin box sealed subwoofer
Nominal Impe: 2 x 4 Ω
Power Rating (AES): 2 x 500W / 4 Ω
Frequency Response +/- 3 dB: 35-250 hz
Sensitivity 1w / 1m: 96 dB
Max SPL, peak: 122 dB
Weight and Measurements:
Dimensions (WxHxD): 780 x 580 x 240 mm
Net Weight: 42 kg
Finish: Black safety coating, other colours available
Grille: Detachable cotton acoustic mesh, 18 mm MDF cabinet
Accessories:
Included Items: User manual
DC-152S
Technical Specifications:
Category: Dual 12" ultra-thin cabinet sealed subwoofer
Nominal Impe: 2 x 4 Ω
Power Rating (AES): 2 x 600W / 4 Ω
Frequency Response +/- 3 dB: 35-250 hz
Sensitivity 1w / 1m: 96 dB
Max SPL, peak: 125 dB
Weight and Measurements:
Dimensions (WxHxD): 920 x 580 x 2400 mm
Net Weight: 35 kg
Finish: Black safety coating, other colours available
Grille: Detachable cotton acoustic mesh, 18 mm MDF cabinet
Accessories:
Included Items: User manual
DC-24SUB
Technical Specifications:
Category: Single 24" neodymium magnet 2-stage inverted subwoofer
Nominal Impe: 8 Ω
Power Rating (AES): 2000 W
Frequency Response +/- 3 dB: 35-250 hz
Sensitivity 1w / 1m: 96 dB
Max SPL, peak: 135 dB
Weight and Measurements:
Dimensions (HxWxD): 750 x 750 x 450 mm
Net Weight: 68 kg
Finish: Black safety coating
Grille: 36 mm MDF cabinet, NL-4 Speakon base x2
Accessories:
Included Items: User manual
DC-32SUB
Technical Specifications:
Category: Single 24" neodymium magnet 2-stage inverted subwoofer
Nominal Impe: 8 Ω
Power Rating (AES): 2400 W
Frequency Response +/- 3 dB: 25-250 hz
Sensitivity 1w / 1m: 102 dB
Max SPL, peak: 135 dB
Weight and Measurements:
Dimensions (HxWxD): 120 x 110 x 750 mm
Net Weight: 218 kg
Finish: Black safety coating
Grille: 40 mm MDF cabinet, NL-4 Speakon base x2
Accessories:
Included Items: User manual
